Spare parts
| Image including brackets ‘(representative only)’ | Item Number | Description | Action | |||
|---|---|---|---|---|---|---|
FinnStack Electric Vaporizers |
||||||
|

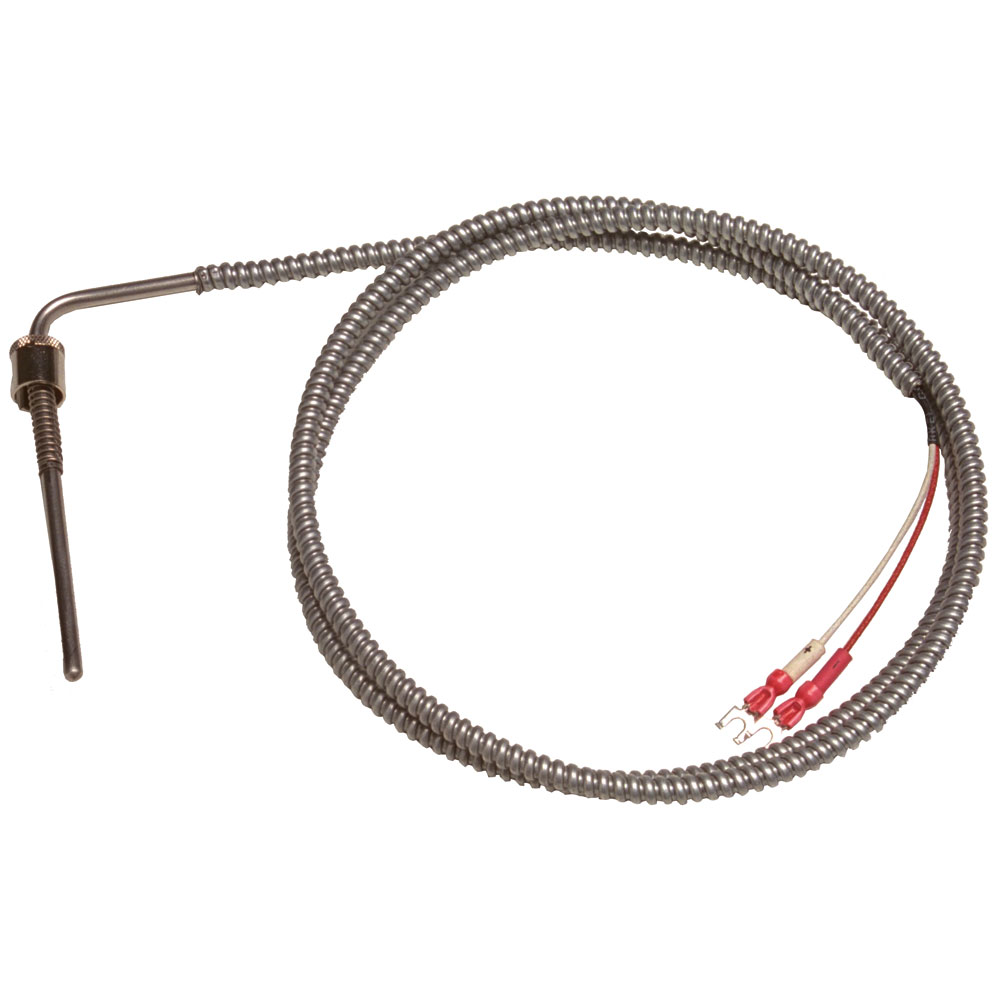

M62-01083 | Type T Outlet Thermocouple Probe, 90 Deg Bend, armored cable | ||||
|
M62-00691 | Type J Block Thermocouple Probe | ||||
|
M62-00692 | Bayonet Adapter for Type J Thermocouple | ||||
|

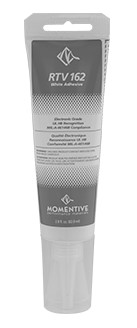

E72-00693 | Potting Compound for J Block Thermocouple | ||||
|
E14-00935 | Grommet for heater terminals, red silicone (pkg 5) | ||||
|

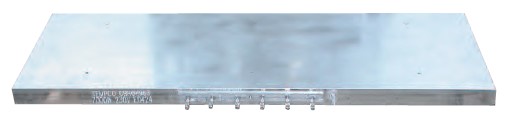

E52-00682 | Heater Plate, 480Vac/3p, 12kW | ||||
|

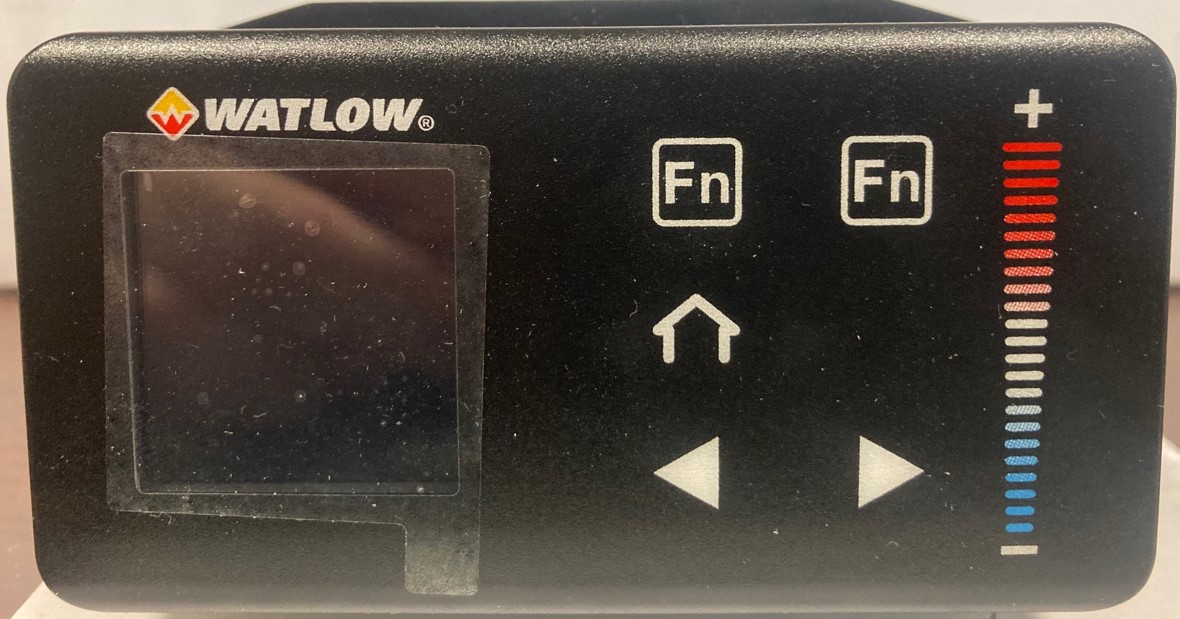

E52-00655 | Watlow Temperature Controller | ||||
|

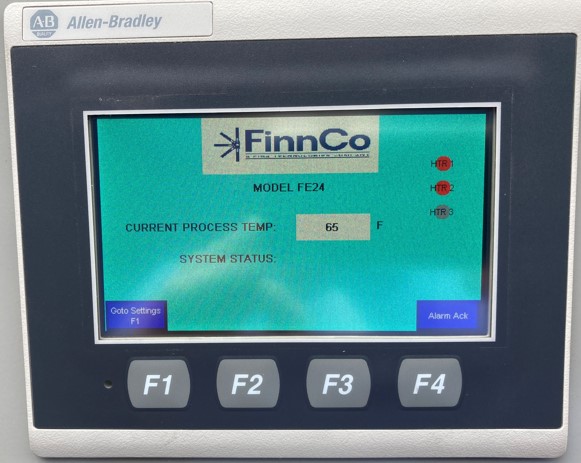

E52-00945 | HMI Terminal, Panelview 800 Series | ||||
|
E42-01462 | HMI Window Kit | ||||
|
E52-01038 | Actuator, Electric, Open/Close, 24VDc | ||||
|

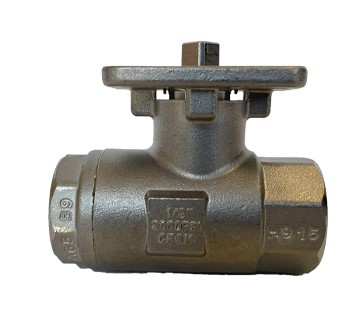

M245-01037 | Valve, Ball, 1" FNPT, 2-way, Full Bore, 3000 psig | ||||
|
M38-00913 | Pressure Switch, 30-600 psi | ||||
Switching Modules |
||||||
|
M24-00562 | Valve, 1" Solenoid, NO, Bronze Body | ||||
|
M24-00563 | Valve, 1-1/2" Solenoid, NO, Bronze Body | ||||
|

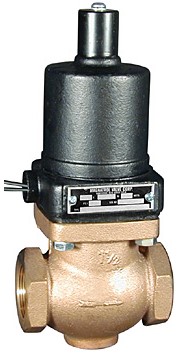

M24-00564 | Valve, 2" Solenoid, NO, Bronze Body | ||||
Ambient Vaporizers |
||||||
|
M14S-00602 | Flange, 1" IPS ANSI CL300, RF, Slip-on, SA-182 304SS | ||||
|
M14-00606 | Gasket, Ring Type, for 1" ANSI CL 300RF Flange | ||||
|
M14S-00842 | Flange, 1-1/2" IPS ANSI CL300, RF, Slip-on, SA-182 304SS | ||||
|
|
M14-00843 | Gasket, Ring Type, for 1-1/2" ANSI CL 300RF Flange | ||||
|
M14S-00924 | Flange, 2" IPS ANSI CL300, RF, Slip-on, SA-182 304SS | ||||
|
|
M14-00613 | Gasket, Ring Type, for 2" ANSI CL 300RF Flange | ||||
|

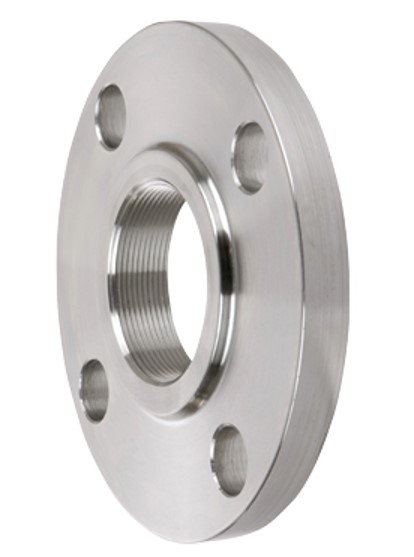

M14S-01340 | Flange, 1-1/2" IPS ANSI CL300, RF, Threaded, SA-182 304SS | ||||
|

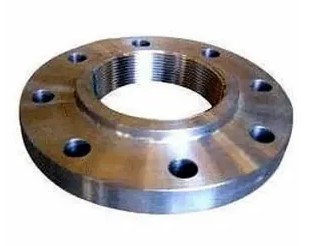

M14S-00611 | Flange, 2" IPS ANSI CL300, RF, Threaded, SA-182 304SS | ||||
|
M14B-00096 | Flange, Mueller-type, 1-1/8" Tube OD, 4-bolt, Tongue, Brass | ||||
|
M14-00012 | Gasket, Mueller-type, 1-1/2" | ||||
|
M14B-00011 | Flange, Mueller-type, 1-5/8" Tube OD, 4-bolt, Tongue, Brass | ||||
|
M14B-00858 | Flange, Mueller-type, 2-1/8"" Tube OD, 4-bolt, Tongue, Brass | ||||
|
M14S-01427 | Flange, 1-1/2" IPS ANSI CL150, FF, Slip-on, SA-182 304SS | ||||
|
|

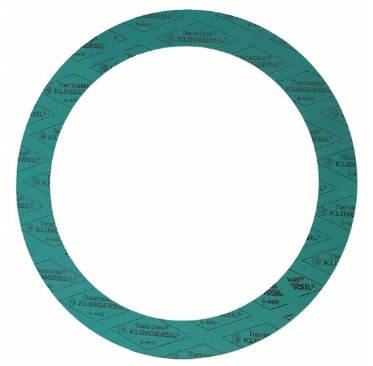

M14-01140 | Gasket, Ring Type, for 1-1/2" ANSI CL150FF Flange | ||||
|
M14S-01067 | Flange, custom, 4-bolt Meuller-type mate, tongue, 1" FNPT, 304SS | ||||
|
|
M14S-01188 | Flange, custom, 4-bolt Meuller-type mate, tongue, 1-1/2" FNPT, 304SS | ||||
