AMBIENT VAPORIZERS
SAFE, EFFICIENT, ECONOMIC
| Model Number | 8-Hr Normal Flow Rate (SCFH, N2) |
Inlet/Outlet Connections |
MAWP (Psig) |
Weight (Lbs) |
Dimensions L X W X H (ft) |
|---|---|---|---|---|---|
| VPCL-2K-700-04 | 2,300 | 1″ MNPT | 700 | 140 | 1′-10″ X 1′-10″ X 12′-8″ |
| VPCL-3K-700-04 | 3,500 | 1″ MNPT | 700 | 210 | 2′-9″ X 1′-10″ X 12′-8″ |
| VPCL-5K-700-04 | 5,000 | 1″ MNPT | 700 | 275 | 3′-9″ X 1′-10″ X 12′-8″ |
| VPCL-7K-700-04 | 7,500 | 1″ MNPT | 700 | 385 | 3′-9″ X 2′-10″ X 12′-8″ |
| VPC-10K-700-04 | 11,500 | 1″ MNPT | 700 | 575 | 4′-0″ X 3′-4″ X 17′-6″ |
| VPC-15K-700-04 | 15,000 | 1″ MNPT | 700 | 750 | 4′-0″ X 4′-4″ X 17′-6″ |
| VPC-20K-700-04 | 20,100 | 1″ MNPT | 700 | 900 | 5′-4″ X 4′-0″ X 17′-6″ |
| VPC-25K-700-06 | 25,000 | 1-1/2″ T&G Flange | 700 | 1,150 | 6′-0″ X 4′-4″ X 17′-6″ |
| VPC-30K-700-06 | 30,000 | 1-1/2″ T&G Flange | 700 | 1,400 | 6′-0″ X 5′-4″ X 17′-6″ |
| VPC-35K-700-06 | 35,100 | 1-1/2″ T&G Flange | 700 | 1,650 | 6′-4″ X 6′-0″ X 17′-6″ |
| VPC-45K-700-06 | 45,500 | 1-1/2″ T&G Flange | 700 | 2,200 | 6′-4″ X 6′-0″ X 23′-6″ |
| VPC-50K-700-07 | 53,000 | 2″ T&G Flange | 700 | 2,500 | 7′-4″ X 6′-0″ X 23′-6″ |
| VPC-60K-700-07 | 61,000 | 2″ T&G Flange | 700 | 2,900 | 8′-0″ X 6′-4″ X 23′-6″ |
| VPC-70K-700-07 | 71,000 | 2″ T&G Flange | 700 | 3,400 | 8′-0″ X 7′-4″ X 23′-6″ |
| VPC-80K-700-07 | 82,000 | 2″ T&G Flange | 700 | 3,850 | 8′-4″ X 8′-0″ X 23′-6″ |
| VPC-100K-700-07 | 101,000 | 2″ T&G Flange | 700 | 4,300 | 9′-4″ X 8′-0″ X 23′-6″ |
Who We Are
FinnCo, the vaporizer manufacturing arm of FIBA Technologies Inc., engineers and manufactures a full line of low-pressure, high-pressure and pressure-building vaporizers. The full range of over 20 different sized vaporizers is expandable, modular, stackable and customizable.
Read MoreFinnCo’s Vaporizers

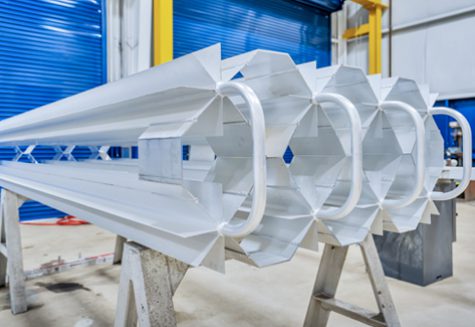

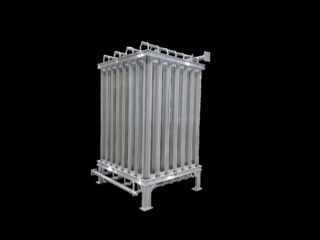

Our low-pressure, ambient, cryogenic vaporizer line is designed for a maximum pressure of 700 PSI. Our standard high-pressure line is built with a stainless steel lining and is designed for a maximum allowable pressure of 10,000 PSI. The pressure-building vaporizers are designed for a 700 PSI maximum. Monel lined models are also available.
Options
- Low & High-Pressure and Pressure-Building Models

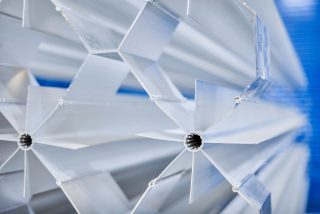

- Fins Designed for Maximum Surface Area
- Wide-Gap Design for Superior Air Flow
- Customized Models Available for Special Applications
Standard Features
- Simple Assembly
- No Welding Required
- Expandable, Modular Design

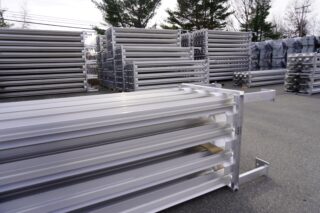

- Stackable with No Crating Required
- Custom Accessories Available
| Optional Connection types | Design Pressure | |
|---|---|---|
| MNPT (male pipe threads) | 700 psig | 48 barg |
| 150 lb ANSI F.F. flange | 275 psig | 19 barg |
| 300 lb ANSI F.F. flange | 450 psig | 31 barg |
| Mueller T&G Flange (Solder OD) | 700 psig | 48 barg |
